【油墨uv固化机】用于pcb单双面电路板油墨固化SK-503-450GD

产品订购

品牌：SunKun(三昆)

型号：SK-503-450GD

订购：不限数量

价格：面议

⒈订购热线：13823369867(李先生) 在线QQ咨询

1753480168

⒉业务咨询：13913507139(黄永贵) 在线QQ咨询

2851085006

⒈市场部：13510246266(黄总经理) 在线QQ咨询

289604232

产品介绍

注意：所有油墨uv固化机均可跟据客户要求非标订制，欢迎来电咨询！

技术参数

1、UV灯功率:3.0kw*5支(汞灯)
2、UV灯总长:620mm、弧长:500mm
3、UV波段主波峰:365nm
4、接触式按键控制
5、强弱光强调节:100%
6、钣金灯箱安装进口插片反射器和光学镜片
7、UV灯高度手动调节
8、采用上排风系统
9、产品通道:出口安装光感应开关
10、输送材料:不锈钢长销轴链条(销长:5mm)
11、输送宽度:50~450mm
12、输送速度:0~2m/min(变频器调速)
13、入口高度:上下空间100mm
14、电源:380AVC 50HZ
15、安装漏电开关
16、电脑喷塑:颜色(东亚升电脑灰色)

Technical Parameters:
1, UV lamp power: 3.0kw * 5 (mercury lamp)
2, the total length of the UV lamp: 620mm, arc length: 500mm
3, UV band main peak: 365nm
4, contact button control
5, strong and weak light intensity adjustment: 100%
6, sheet metal light box installation of imported insert reflector and optical lens
7, UV lamp height manual adjustment
8, using the upper exhaust system
9, product channel: export installation optical sensor switch
10, conveying materials: stainless steel long pin chain (pin length: 5mm)
11, conveying width: 50~450mm
12, conveying speed: 0~2m/min (inverter speed regulation)
13, the entrance height: up and down space 100mm
14, power: 380AVC 50HZ
15, install the leakage switch
16, computer spray: color (East Asia rose computer gray)

功能用途

主要用途：
广泛用于UV光固油墨上光产品烘干固化，电路板油墨固化，uv油漆固化，以及多方面产品的应用粘贴快速固化。

性能特点
1．瞬间干燥，生产效率高。
2．干燥后能使印件表面达到高硬度、高光泽，耐磨擦、耐溶剂的效果。
3．传动采用辊轴传送，变频无级调速。
4．输送带防偏移，保证输送顺畅。
5．选用优质高效灯管，灯室强制式排热，延长灯管寿命，保护干燥物品不会受热变形。
6．箱体表面全喷塑处理，美观大方，耐腐蚀。
该机造型新颖，结构合理，有效工作面积大，功能全，操作简单，维修调方便，噪音小，可靠性高，成本低，能耗少，生产效率高。

The main purpose:
Widely used in UV light-solid ink glazing products drying and curing, circuit board ink curing, uv paint curing, and multi-faceted application paste fast

curing.

Performance characteristics
1. Instant drying and high production efficiency.
2. After drying, the surface of the printing material can achieve high hardness, high gloss, abrasion resistance and solvent resistance.
3. The drive adopts roller shaft transmission and variable frequency stepless speed regulation.
4. The conveyor belt is anti-offset to ensure smooth delivery.
5. The high-quality and high-efficiency lamp tube is used, and the lamp room is forced to exhaust heat to extend the life of the lamp tube and protect the

dry items from heat deformation.
6. The surface of the box is completely sprayed, beautiful and corrosion resistant.
The machine has novel shape, reasonable structure, large effective working area, complete functions, simple operation, convenient maintenance, low noise,

high reliability, low cost, low energy consumption and high production efficiency.

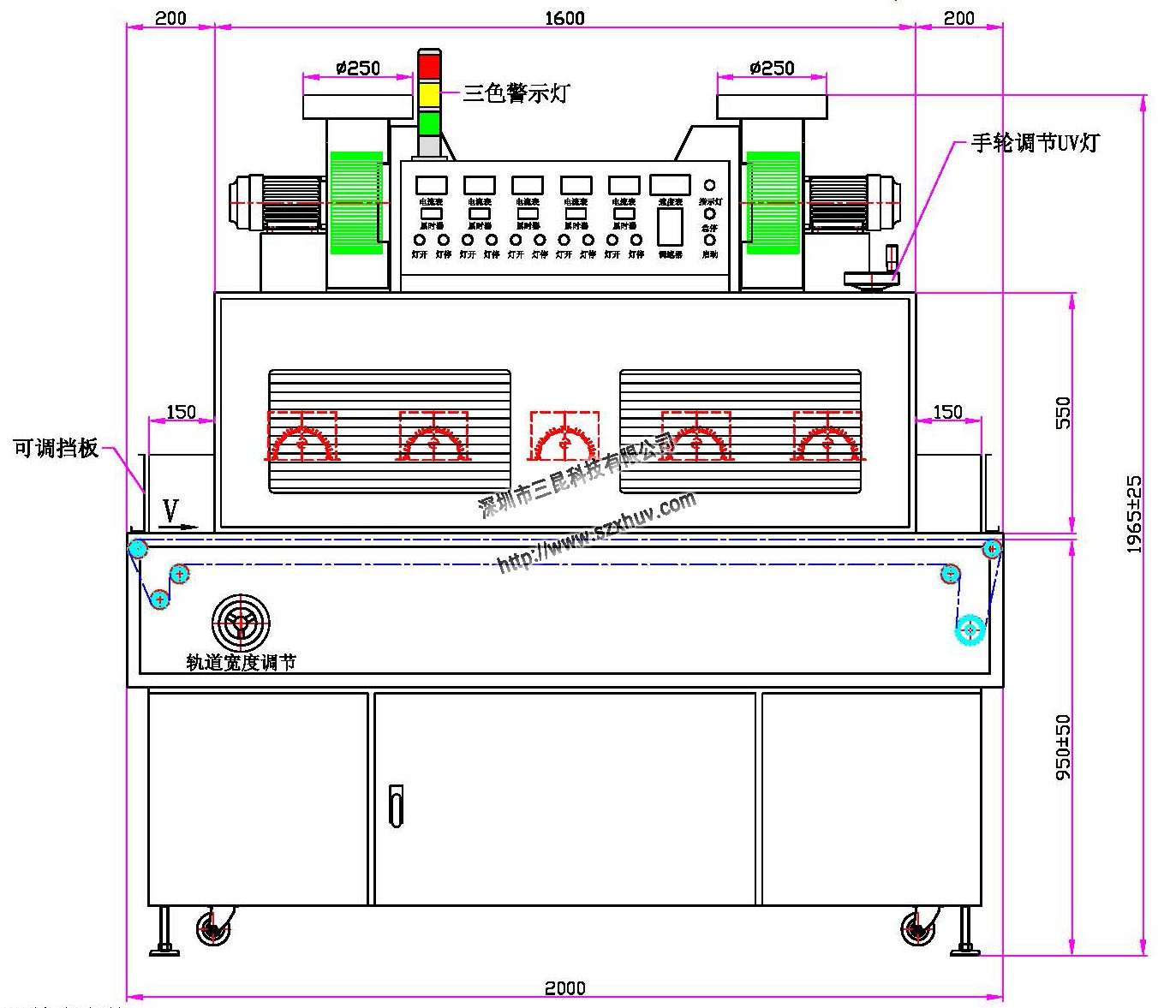

产品平面设计图
